The IRB 1300 offers class-leading lifting ability, reach and path accuracy, in a faster, more compact package to enhance both productivity and production-line flexibility IRB 1300 can be programmed with the simple and easy-to use software Wizard Easy Programming. which is pre-installed on the robot.
IRB 1300 is powered by OmniCore E10 ultra-slim, C30 compact, or C90XT rugged compact controllers.
Design allows deployment in confined spaces.

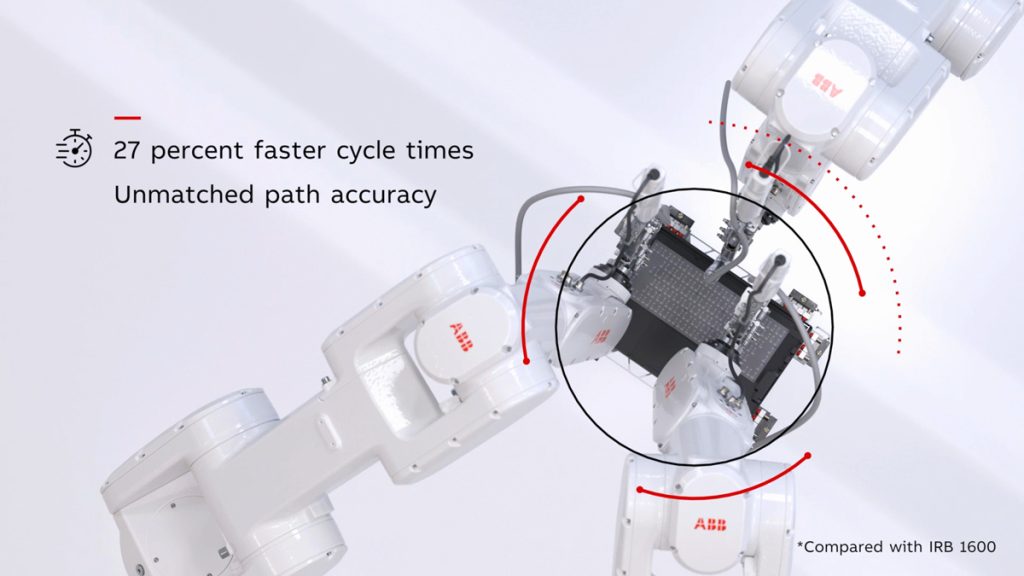

Up to 27% shorter cycle times for increased productivity.

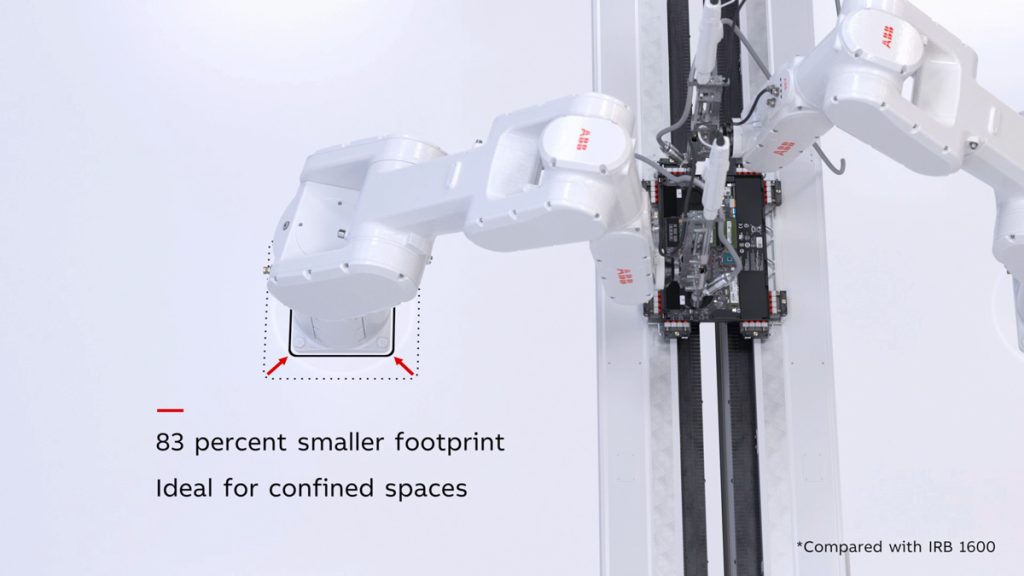

83% smaller footprint maximizes space utilization.
Class-leading accuracy for high quality performance.

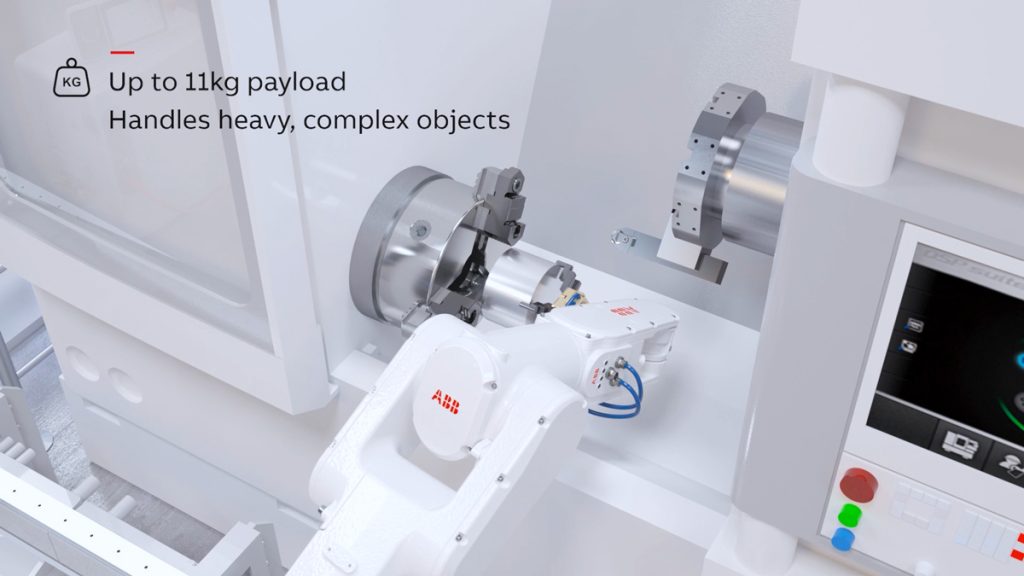

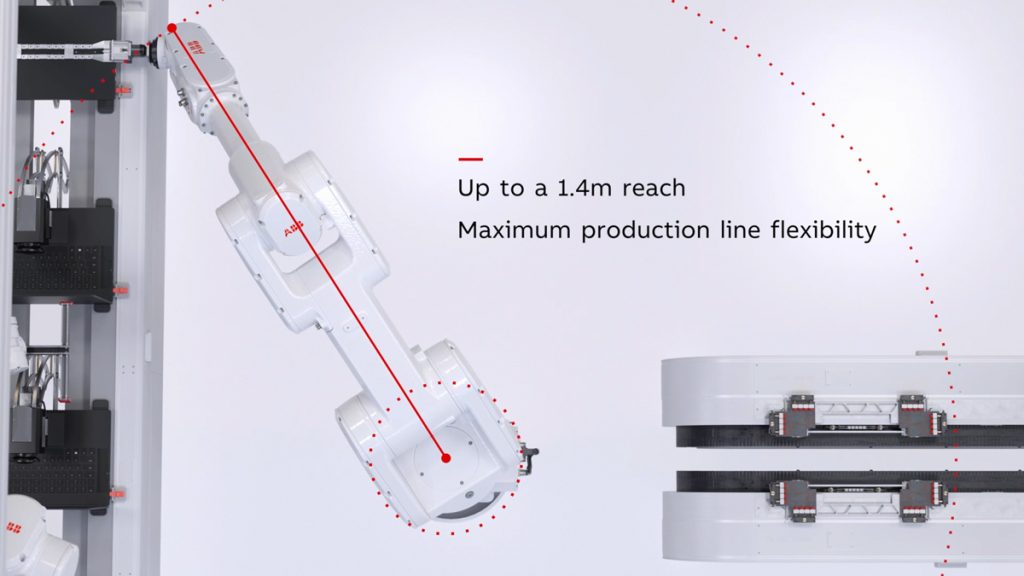

The IRB 1300 six-axis industrial robot has the reach and lifting capacity to serve high load applications in electronics, general industry, food & beverage, logistics and tier 1 automotive production. Available in four main load/reach versions – 12 kg/1.4 m, 11 kg/0.9 m, 10 kg/1.15 m, and 7 kg/1.4 m – the 12 kg variant offers the highest payload of any robot in its class.
Rapid production is ensured by the IRB 1300’s 27 percent improvement in cycle times. Combined with greater payload and reach, the IRB 1300 can be used for a wide range of tasks in materials handling, machine tending, polishing, and assembly and testing applications
IRB 1300 features IP67, Foundry Plus 2 and cleanroom ISO 4 versions, enabling new applications in harsh and contamination-free production environments. Foundry Plus 2 offers stainless steel on end-effector to prevent rusting.
Meeting the need to maximize production capacity while saving on space, the ABB IRB 1300 is nearly 60 percent lighter and one-sixth the footprint of ABB’s IRB 1600 robot. Occupying just 220 mm by 220 mm of floor space, the IRB 1300 enables more robots to be deployed in a given area.
Complex applications such as polishing and machine tending are made possible by ABB’s OmniCore controller, giving the IRB 1300 advanced motion control and best-in-class path accuracy.
By helping to protect against premature wear, this feature can help to prolong the robot’s service life, minimizing disruption caused by downtime and unscheduled repairs
Press Release
Robotics Product Range brochure
Summary: new robots including IRB 1090, IRB 6710, IRB 6720, IRB 6730, IRB 6740, IRB 930.
IRB 1300, brochure, 12-page
No summary available
IRB 1300 product specification
No summary available.
Ready to up your production game with ABB’s IRB 1300? PennAir’s sister brand, Valley Fluid Components, is here to be your trusted partner. Whether you’re looking to enhance your automation capabilities or troubleshoot any issues, their team is fully equipped and ready to assist you in the Greater Virginia area.
